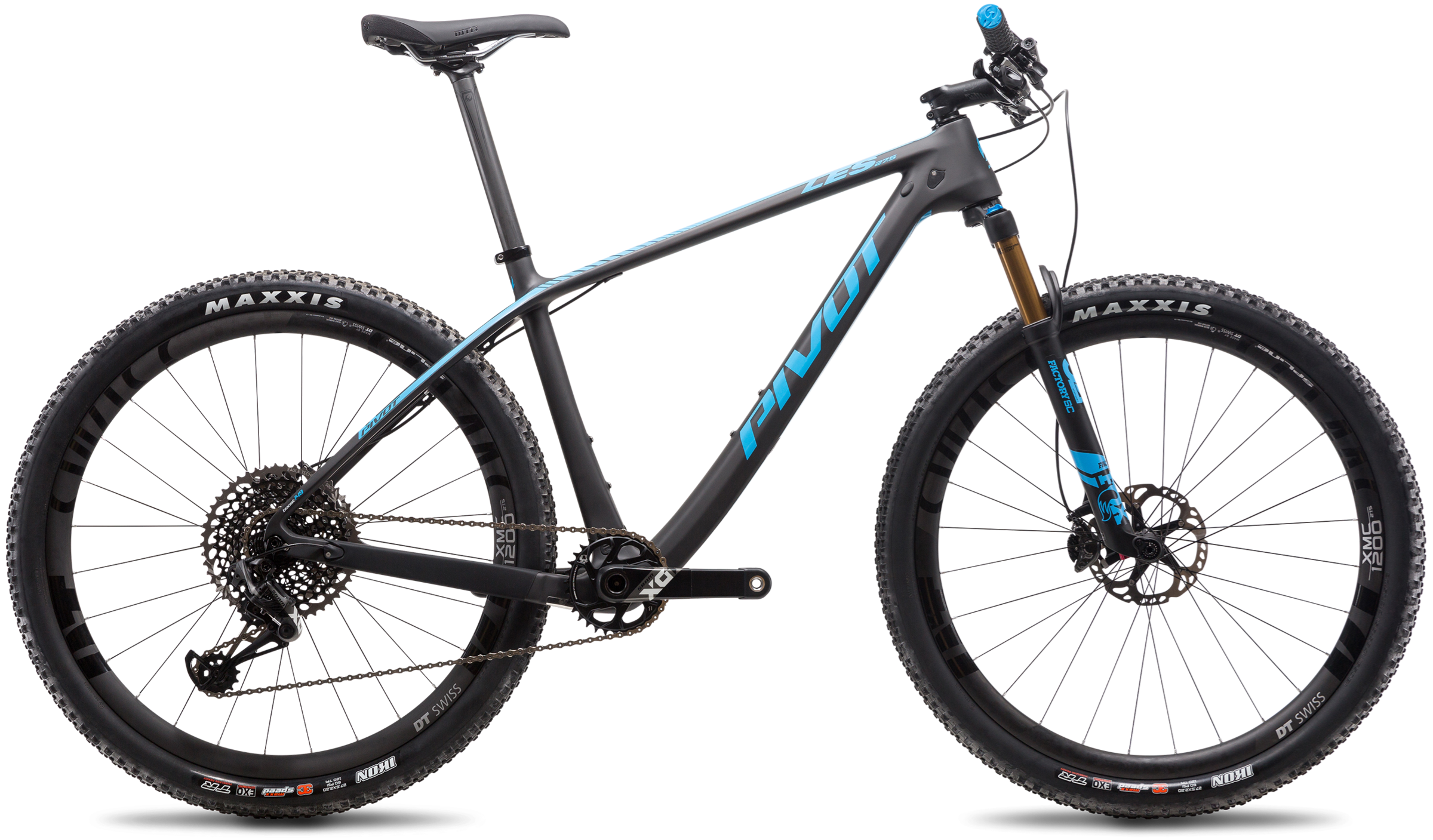

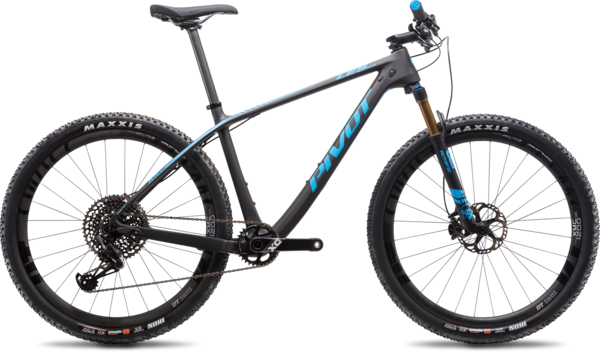

Pivot Cycles LES 27.5 Team XX1

Pivot Cycles LES 27.5 Team XX1
Components in image may differ from actual product.
  • Components in image may differ from actual product.
  • Components in image may differ from actual product.
Color:
Size: Select size
Seatpost:
Please select options Unavailable

Details

Wickedly Fast. Ridiculously Fun.

The LES 27.5 is a hardtail aficionado’s dream machine—an ultra-light chassis with BMX-like handling and the rollover advantage of bigger wheels, all in a snappy, fast-accelerating package to fit a wide range of rider sizes. It features new-school hardtail racing geometry with category-redefining short chainstays, allowing the bike to move over trails with a rare agility not often found in serious racing hardtails. With clearance for up to 2.6-inch-wide tires and designed to work with forks from 100–130mm travel, the LES 27.5 is equally at home on a twisting short track as it is through black-diamond terrain. It’s wickedly fun, hyper-capable, and ready for rapid-fire accelerations through rollers, berms, and jumps.

The LES 27.5 is built on an ultra-light, ride-tuned carbon frame featuring leading-edge carbon fiber materials and Pivot’s proprietary hollow core internal molding technology. Specific frame features include the oversized box section downtube and bottom bracket area, tapered head tube, and seat and chainstay shaping designed to reduce rider fatigue and trail vibration. The design incorporates boost 110mm front and 148mm rear dropout spacing. Besides the added clearance for bigger tires, boost spacing allows you to take advantage of wider hubs for stiffer wheels and the most precise handling and responsiveness to rider input. Full-length internal cable routing via Pivot’s exclusive, easy-to-maintain Cable Port System keeps cables clean, quiet, and protected, and allows seamless integration of electronic drivetrains. The LES 27.5 is easily 2x and 1x gearing compatible. For those who love the simple functionality of 1x systems, the removable front derailleur mount offers an incredibly sleek, clean installation with almost no evidence of the un-needed hardware. With a racing pedigree that holds victories in professional races around the world, the LES 27.5 is built to excel.

Specs

Frame High-modulus carbon fiber, hollow core internal molding technology, Cable Port System
Fork Fox Factory 32 27.5" - 100mm
Headset Pivot Precision Sealed Cartridge - Race
Axles Front: 15 x 110mm
Rear: 12 x 148mm
Rims/Wheels DT Swiss XMC 1200, 24mm
Hubs DT Swiss 240
Tires Maxxis Ikon 27.5 x 2.2" TR, 3C, EXO, MAXXSPEED, 120 TPI
Crankset SRAM XX1 Eagle DUB SL
Chainrings 32T
Chain SRAM XX1 12-Speed
Rear Derailleur SRAM XX1 12-Speed
Cassette/Rear Cogs SRAM XX1 XG-1299 10-50T
Shifters SRAM XX1 12-Speed
Handlebars Phoenix Team Flat Carbon - 760mm
Tape/Grips Phoenix Team Padloc
Stem Phoenix Team XC/Trail
Brakes SRAM Guide Ultimate
Saddle Phoenix WTB Team Volt
Seat Post Please choose seatpost from the drop-down menu

* Subject to change without notice.

Videos

The Pivot LES 27.5: World Cup Performance

Part Numbers

Option MPN
Team Blue / Phoenix Team Carbon Rigid (+$0) / X-Small 19L7CV227CXX1--BLUXSSTDHN
Team Blue / KS LEV Integra 100mm Dropper (+$310) / X-Small 19L7CV227CXX1--BLUXS100HN
Team Blue / Fox Transfer 125mm Dropper (+$310) / X-Small 19L7CV227CXX1--BLUXS125HN
Team Blue / Phoenix Team Carbon Rigid (+$0) / Small 19L7CV227CXX1--BLUSMSTDHN
Team Blue / KS LEV Integra 100mm Dropper (+$310) / Small 19L7CV227CXX1--BLUSM100HN
Team Blue / Fox Transfer 125mm Dropper (+$310) / Small 19L7CV227CXX1--BLUSM125HN
Team Blue / Phoenix Team Carbon Rigid (+$0) / Medium 19L7CV227CXX1--BLUMDSTDHN
Team Blue / Fox Transfer 125mm Dropper (+$310) / Medium 19L7CV227CXX1--BLUMD125HN
Team Blue / Phoenix Team Carbon Rigid (+$0) / Large 19L7CV227CXX1--BLULGSTDHN
Team Blue / Fox Transfer 125mm Dropper (+$310) / Large 19L7CV227CXX1--BLULG125HN
Westside Red / Phoenix Team Carbon Rigid (+$0) / X-Small 19L7CV227CXX1--REDXSSTDHN
Westside Red / KS LEV Integra 100mm Dropper (+$310) / X-Small 19L7CV227CXX1--REDXS100HN
Westside Red / Fox Transfer 125mm Dropper (+$310) / X-Small 19L7CV227CXX1--REDXS125HN
Westside Red / Phoenix Team Carbon Rigid (+$0) / Small 19L7CV227CXX1--REDSMSTDHN
Westside Red / KS LEV Integra 100mm Dropper (+$310) / Small 19L7CV227CXX1--REDSM100HN
Westside Red / Fox Transfer 125mm Dropper (+$310) / Small 19L7CV227CXX1--REDSM125HN
Westside Red / Phoenix Team Carbon Rigid (+$0) / Medium 19L7CV227CXX1--REDMDSTDHN
Westside Red / Fox Transfer 125mm Dropper (+$310) / Medium 19L7CV227CXX1--REDMD125HN
Westside Red / Phoenix Team Carbon Rigid (+$0) / Large 19L7CV227CXX1--REDLGSTDHN
Westside Red / Fox Transfer 125mm Dropper (+$310) / Large 19L7CV227CXX1--REDLG125HN
